Cables by Type
Applications
Lighting Systems: Powering headlights, taillights, interior lights, and signal lights.
Instrumentation and Control: Connecting sensors, gauges, and control modules for vehicle monitoring and operation.
Communication Systems: Facilitating data transmission between electronic control units (ECUs) and other components.
Infotainment Systems: Providing power and signals to audio, video, and navigation systems.
Safety Systems: Ensuring reliable operation of airbags, ABS, and other safety features.
Battery and Power Distribution: Connecting the vehicle battery to different electrical components for power distribution.
Construction
Conductors: Typically made of stranded copper to provide excellent electrical conductivity and flexibility.
Insulation: High-quality materials such as polyvinyl chloride (PVC), cross-linked polyethylene (XLPE), or ethylene propylene rubber (EPR) to withstand high temperatures and electrical stress.
Shielding: Optional shielding, including aluminum foil or braided copper, to protect against electromagnetic interference (EMI) and ensure signal integrity.
Outer Sheath: Durable outer sheath made of materials like PVC, thermoplastic polyurethane (TPU), or thermoplastic elastomer (TPE) to resist abrasion, chemicals, and environmental factors.
Flame Retardant Properties: Many LV cables are designed with flame-retardant properties to enhance vehicle safety.
Cable Types

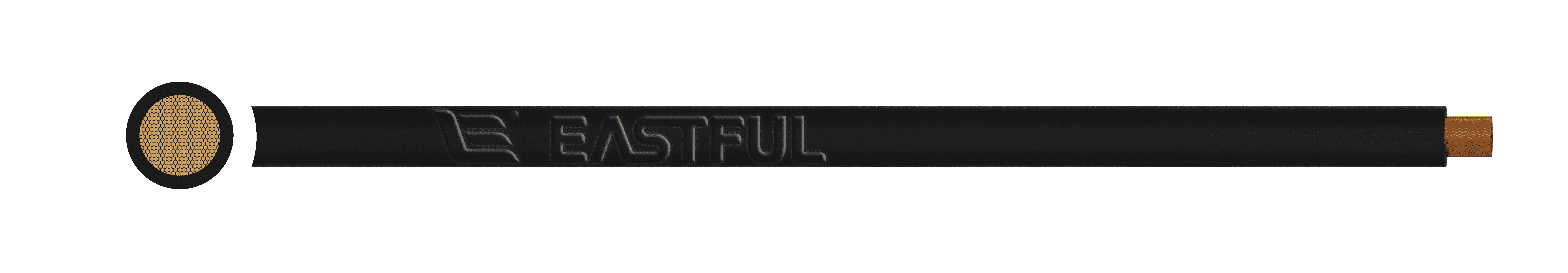

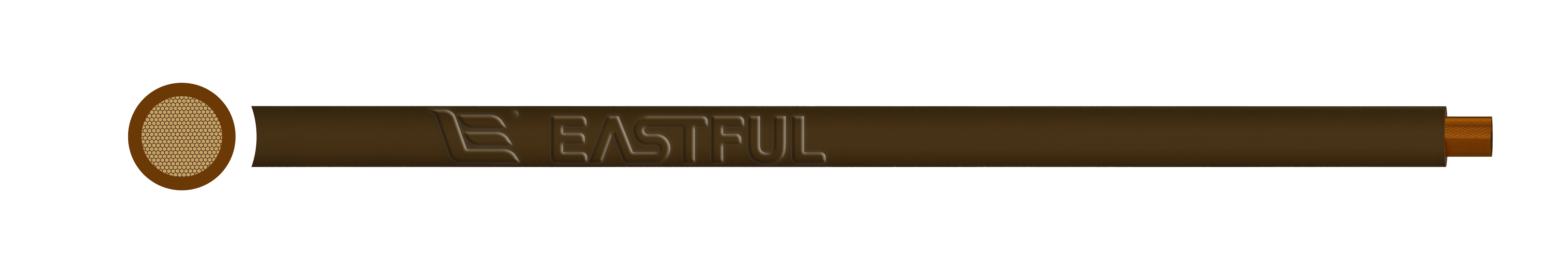

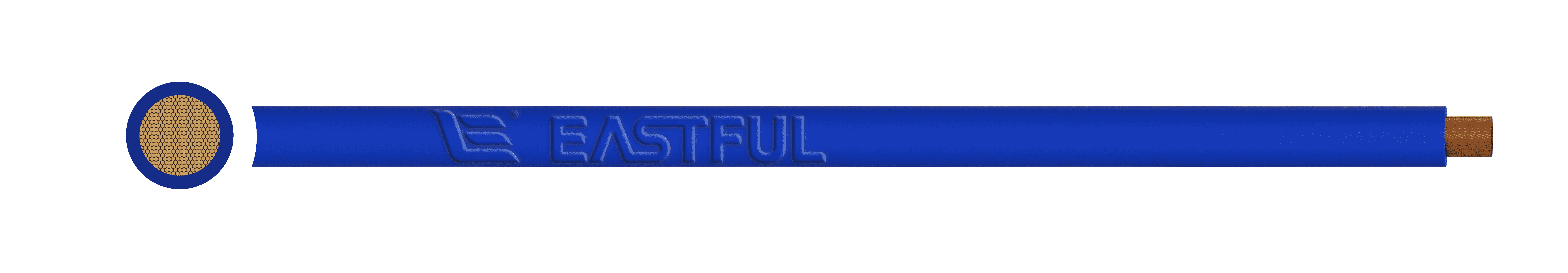

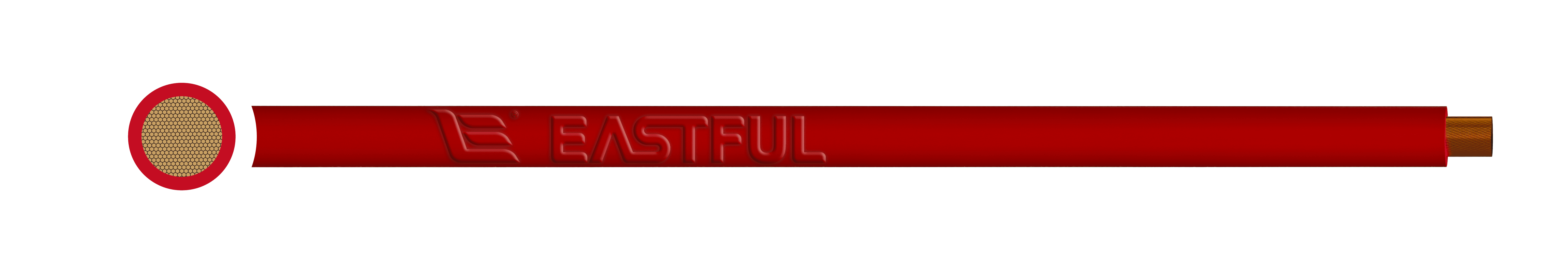

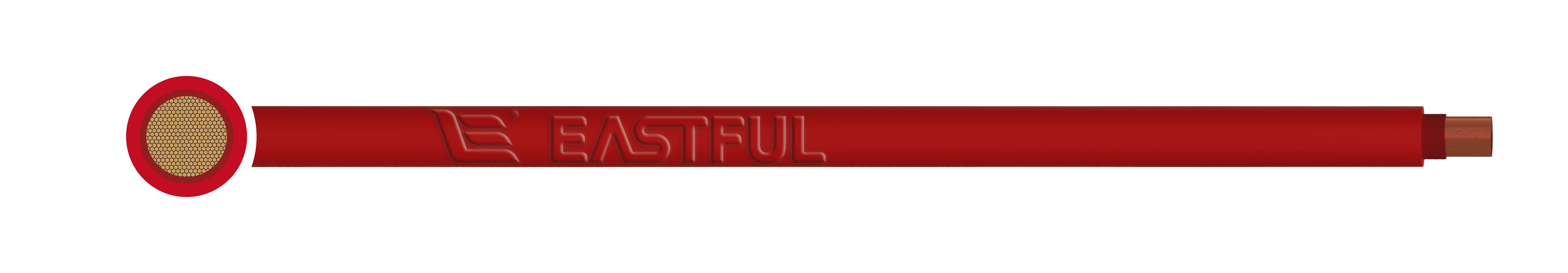

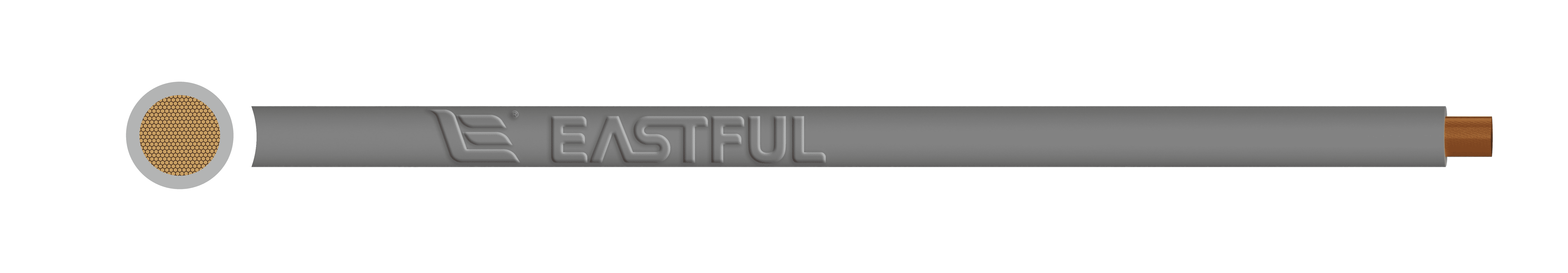

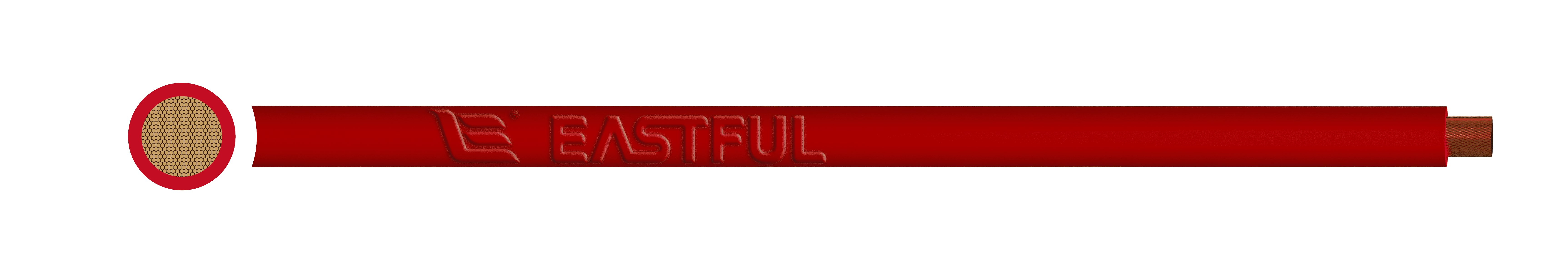

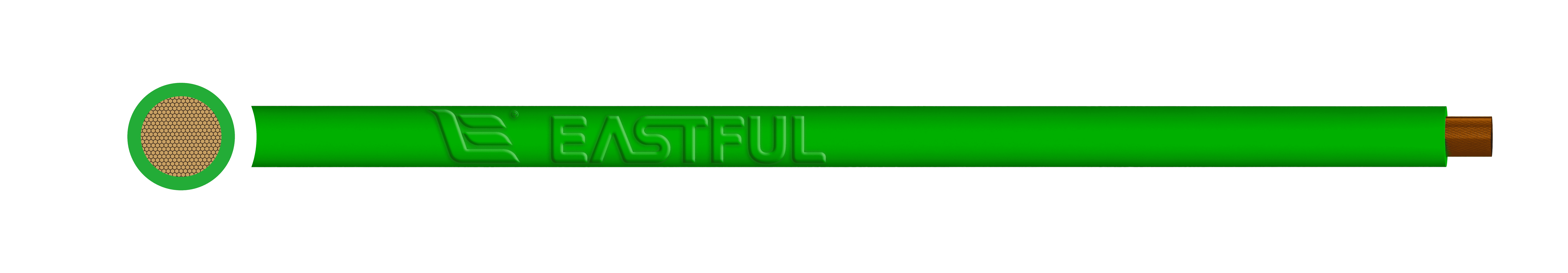

Single-Core Cables
1. Construction: Includes a single conductor with insulation and an optional outer sheath.
2. Applications: Suitable for general wiring tasks, including power and signal transmission in various vehicle systems.
Multi-Core Cables
1. Construction: Features multiple conductors within a single sheath, each with its own insulation.
2. Applications: Used for complex wiring needs, including control systems and data communication.
Shielded Cables
1. Construction: Includes conductors with individual or overall shielding to prevent EMI.
2. Applications: Ideal for sensitive electronic systems requiring protection from external interference.
Battery Cables
1. Construction: Robust conductors with high-temperature insulation and durable outer sheath.
2. Applications: Used to connect the vehicle battery to the starter motor, alternator, and power distribution units.
Flat Cables
1. Construction: Flat configuration with multiple conductors arranged parallelly.
2. Applications: Suitable for confined spaces and flexible installations, such as in doors and seats.
Standard
ISO 6722
1. Title: Road Vehicles – 60V and 600V Single-Core Cables – Dimensions, Test Methods, and Requirements
2. Scope: This international standard specifies the requirements for single-core cables used in road vehicles, including dimensions, materials, performance, and testing to ensure reliability and safety.
ISO 14572
1. Title: Road Vehicles – Round, Sheathed, 60V and 600V Cables – Test Methods and Requirements for High Performance Sheaths
2. Scope: This standard outlines the requirements for sheathed cables used in road vehicles, focusing on high-performance sheaths that provide enhanced protection and durability.
SAE J1128
1. Title: Low Tension Primary Cable
2. Scope: This standard defines the requirements for low tension primary cables used in automotive applications, addressing construction, materials, performance, and testing to ensure safe and reliable operation.
ISO 6722-1
1. Title: Road Vehicles – 60V and 600V Single-Core Cables – Part 1: Dimensions, Test Methods, and Requirements for Copper Conductors
2. Scope: This part of the standard specifies the requirements for copper conductors used in single-core cables for road vehicles, ensuring electrical and mechanical performance.
